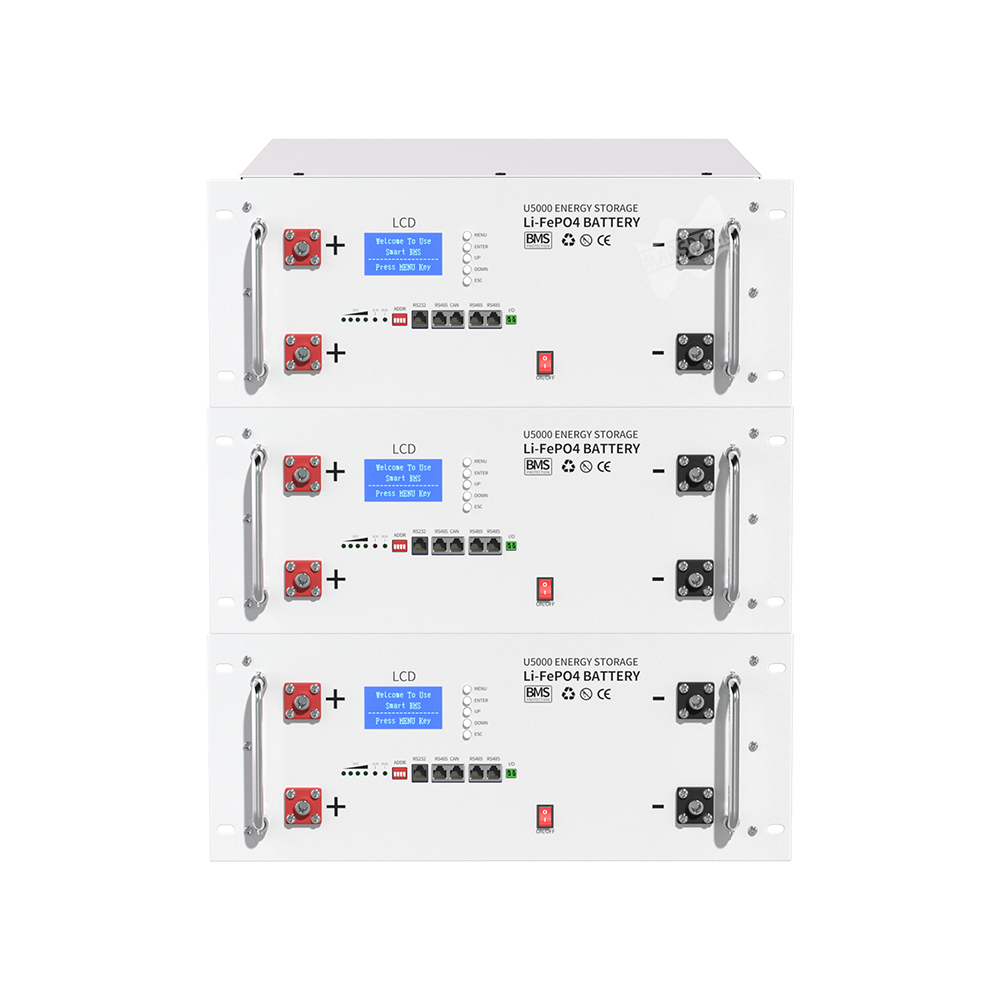

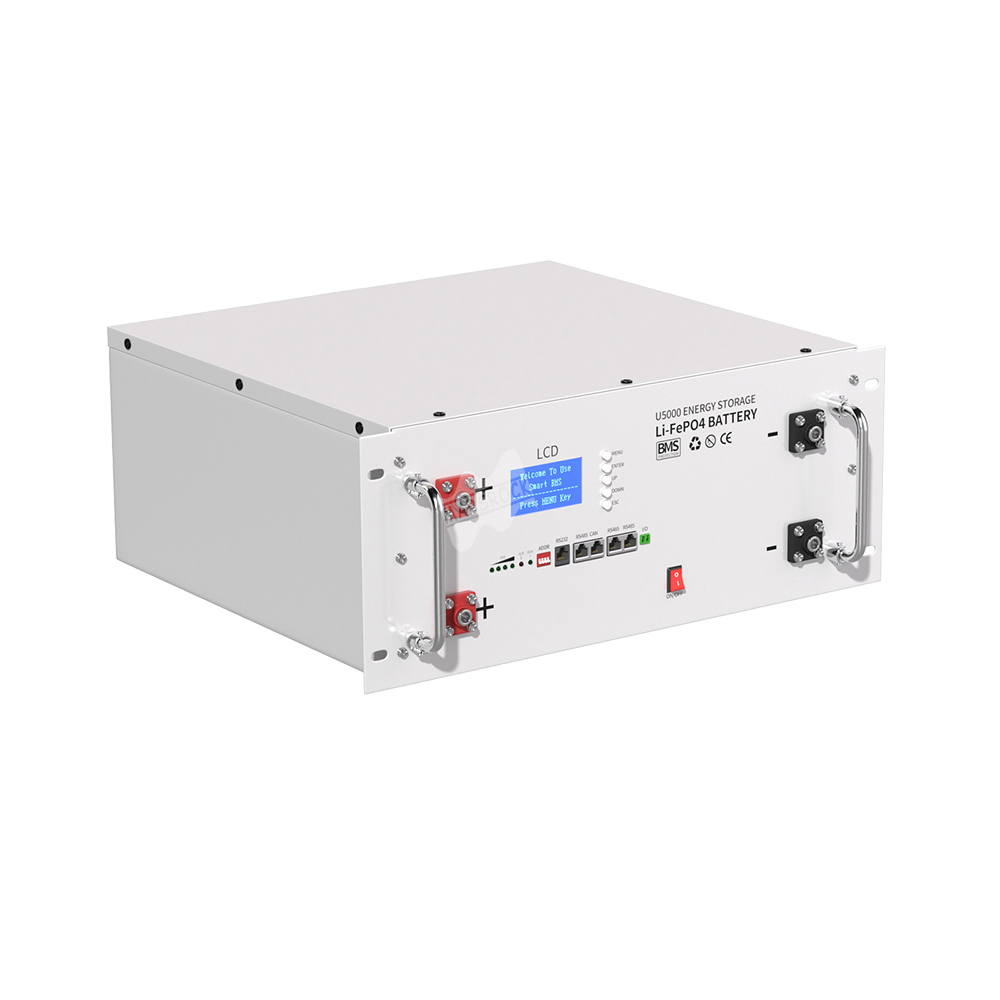

Name: 100Ah/200Ah/300Ah 48V Rack Mounted LFP Energy Storage Battery
Brand: Marsrock Energy Storage Website
SKU: SG-48V 100/200/300Ah
Availability: InStock
Rating: 5 (1 reviews)

No.SG-48V 100/200/300Ah

SG series energy storage battery,pack modular design,strong universality,convenient installation,simple operation,independent maintenance,high reliability,large space and other characteristics.

Standard Voltage

48V

Standard Energy

4.8kWh/9.6kWh/14.4kWh

Cycle Life

>6000 cycles

MaxParallel

15pcs

G.W./unit(kg)

50/90/121

GET A QUOTE

Add to Quote List View Quote List

Description

Special Reminder:
The indicated global retail price only for your reference. Contact with us to get more discount and its current inventory quantity of us which located in your country.

Advantage
Pack modular design, strong universality, convenient installation, simple operation, independent maintenance, high reliability, safety, large space, conducive to ventilation and heat dissipation, is the main component of household power supply, lithium iron phosphate battery has a long life, enough stability, more security and other characteristics.
Feature

LiFePo4 cell class A
Support 15pcs in Parallel
Rack Design
Compatible with Multiple Inverter Brands
Touch Screen is Optiona
100A/200A BMS for charge/discharge
6000 Cycle Times@dod80%
BT&WIFI/touch LCD screen is optional
LCD Display

Specifications
100Ah

200Ah

300Ah

Technical Parameter

Standard Voltage	48V
Standard Capacity	100Ah	200Ah	300Ah
Standard Energy	4.8kWh	9.6kWh	14.4kWh
Working Voltage	40.5-54V
Standard Charge Current	50A	100A	100A
Standard Discharge Current	100A	100A	200A
Suggested DOD	80%
Cycle Life	>6000 cycles
IP Rating	Ip21
Operating temperature for discharge	-20℃~60℃
Operating temperature for charge	0℃~45℃
MaxParallel	15pcs
Communication	RS232/CAN/RS485(WIFI/BT optional)
Display	LCD Display (touch screen optional)
Warranty	5 years
Certificate	UN38.3/MSDS/CE/ROHS/FCC
N.W./unit(kg)	40	75	105
G.W./unit(kg)	50	90	121
Product Size/unit(mm)	430482178	790482178	790482240
Meas/unit(mm)	530480300	870610410	870610440
