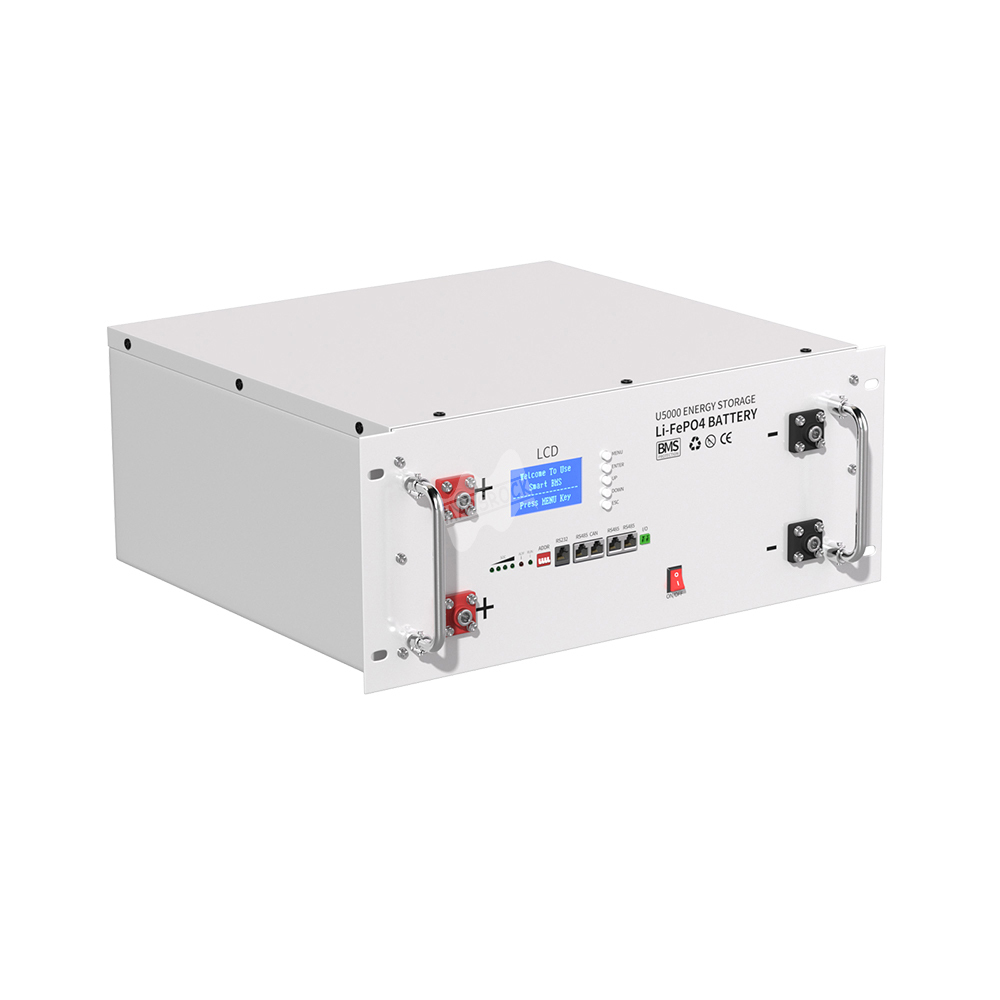

Name: 100Ah/200Ah/300Ah 51.2V Rack Mounted LFP Energy Storage Battery
Brand: Marsrock Energy Storage Website
SKU: SG-51.2V 100/200/300Ah
Availability: InStock
Rating: 5 (1 reviews)

No.SG-51.2V 100/200/300Ah

SG series energy storage battery,pack modular design,strong universality,convenient installation,simple operation,independent maintenance,high reliability,large space and other characteristics.

Standard Voltage

51.2V

Standard Capacity

100Ah/200Ah/300Ah

Standard Energy

5.12kWh/10.24kWh/15.36kWh

Cycle Life

>6000 cycles

G.W./unit(kg)

52/99/129

GET A QUOTE

Add to Quote List View Quote List

Description

Special Reminder:
The indicated global retail price only for your reference. Contact with us to get more discount and its current inventory quantity of us which located in your country.

Advantage
Pack modular design, strong universality, convenient installation, simple operation, independent maintenance, high reliability, safety, large space, conducive to ventilation and heat dissipation, is the main component of household power supply, lithium iron phosphate battery has a long life, enough stability, more security and other characteristics.
Feature

LiFePo4 cell class A

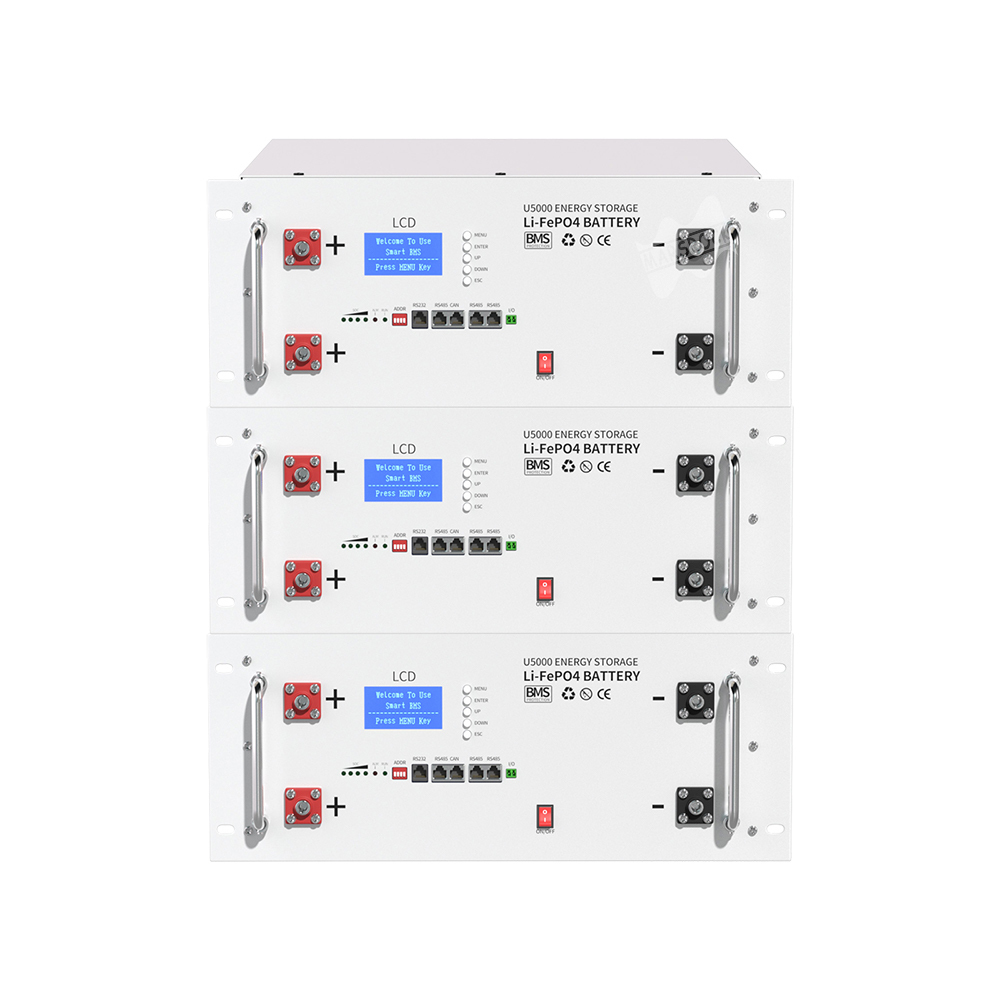

Support 15pcs in Parallel
Rack Design
Compatible with Multiple Inverter Brands
Touch Screen is Optiona
100A/200A BMS for charge/discharge
6000 Cycle Times@dod80%
BT&WIFI/touch LCD screen is optional
LCD Display

Specifications
100Ah

200Ah

300Ah

Technical Parameter

Standard Voltage	51.2V
Standard Capacity	100Ah	200Ah	300Ah
Standard Energy	5.12kWh	10.24kWh	15.36kWh
Working Voltage	43.2-57.6V
Standard Charge Current	50A	100A	100A
Standard Discharge Current	100A	100A	200A
Suggested DOD	80%
Cycle Life	>6000 cycles
IP Rating	Ip21
Operating temperature for discharge	-20℃~60℃
Operating temperature for charge	0℃~45℃
MaxParallel	15pcs
Communication	RS232/CAN/RS485(WIFI/BT optional)
Display	LCD Display (touch screen optional)
Warranty	5 years
Certificate	UN38.3/MSDS/CE/ROHS/FCC
N.W./unit(kg)	44	84	110
G.W./unit(kg)	52	99	129
Product Size/unit(mm)	430482178	790482178	790482240
Meas/unit(mm)	530480300	870610410	870610440
