Technical Parameter
|
Performance |
|
|
Cell technology |
LFP (LiFePO4) |
|
Battery usable energy [1] |
15.974 kWh |
|
Nominal voltage |
51.2 V |
|
Operating voltage |
45.6 - 56.16 V |
|
Nominal output current |
300 A / 150 A |
|
BMS protection current |
310 A, 1 s |
|
Communication |
|
|
Display |
SOC status indicator, LED indicator |
|
Communication |
CAN / RS485 / RS232 |
|
General Specification |
|
|

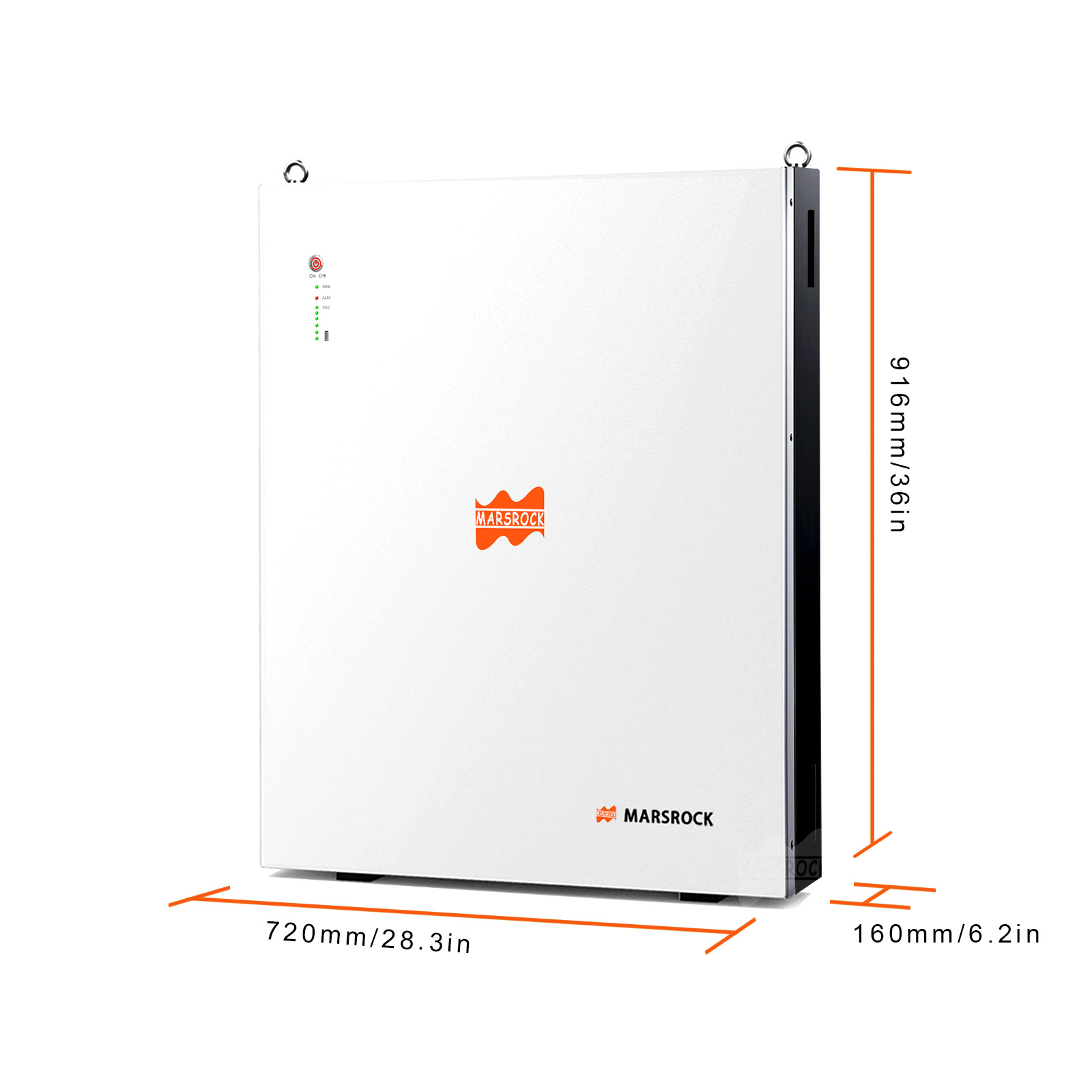

Dimension (W*D*H) |
720x160x916 mm |
|
28.3x6.3x36.1 inch |
|
|
Weight |
130 kg (287 lbs) |
|

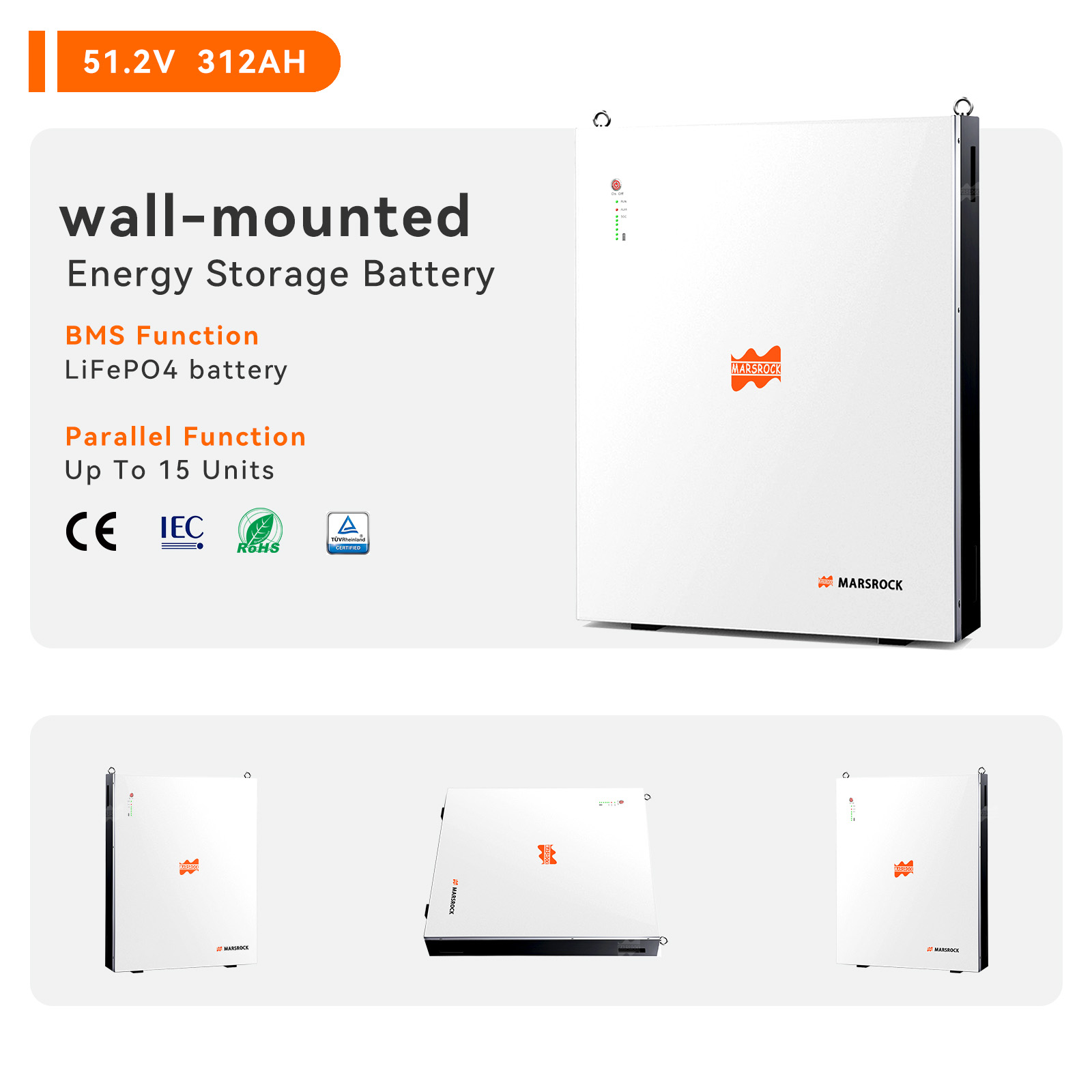

Installation |
Floor stand or Wall mounted |
|
Operating temperature [2] |
-20 to 60 °C (-4 to 140 °F) |
|
Environmental humidity |
≤ 95%RH (No condensation) |
|
Protection rating |
IP 20 |
|
Cycle life [3] |
6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL |
|

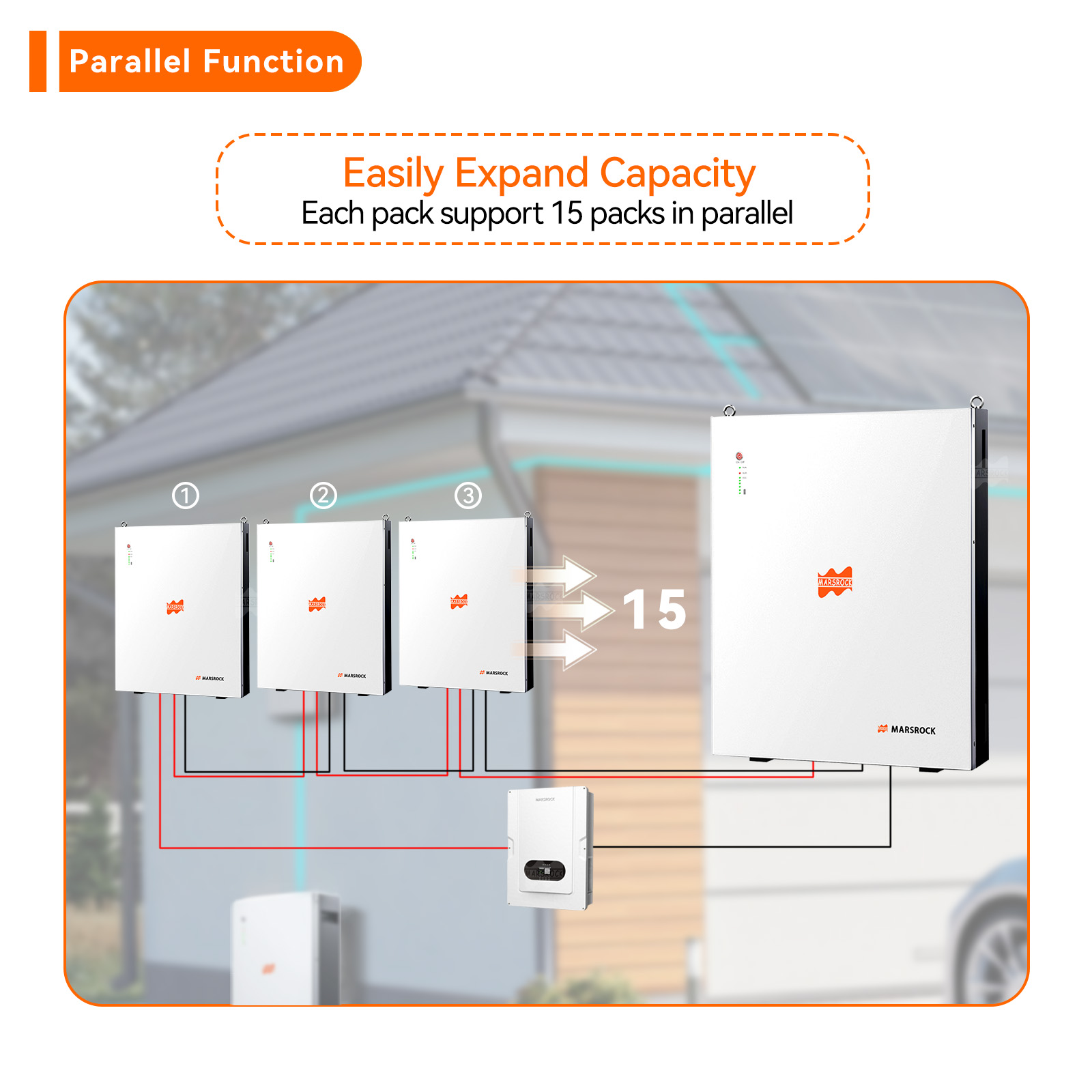

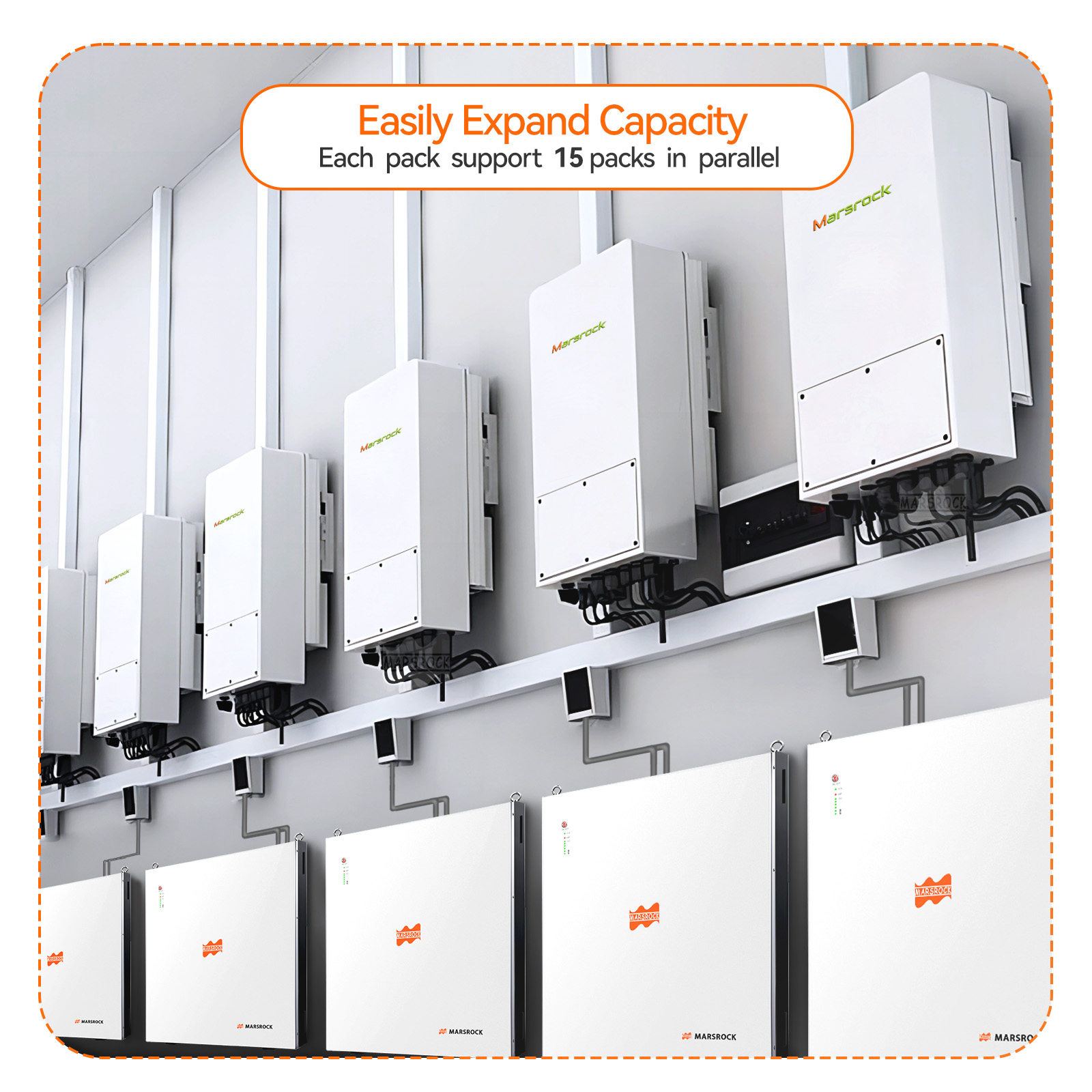

Scalability |
Max 15 batteries in parallel |
|

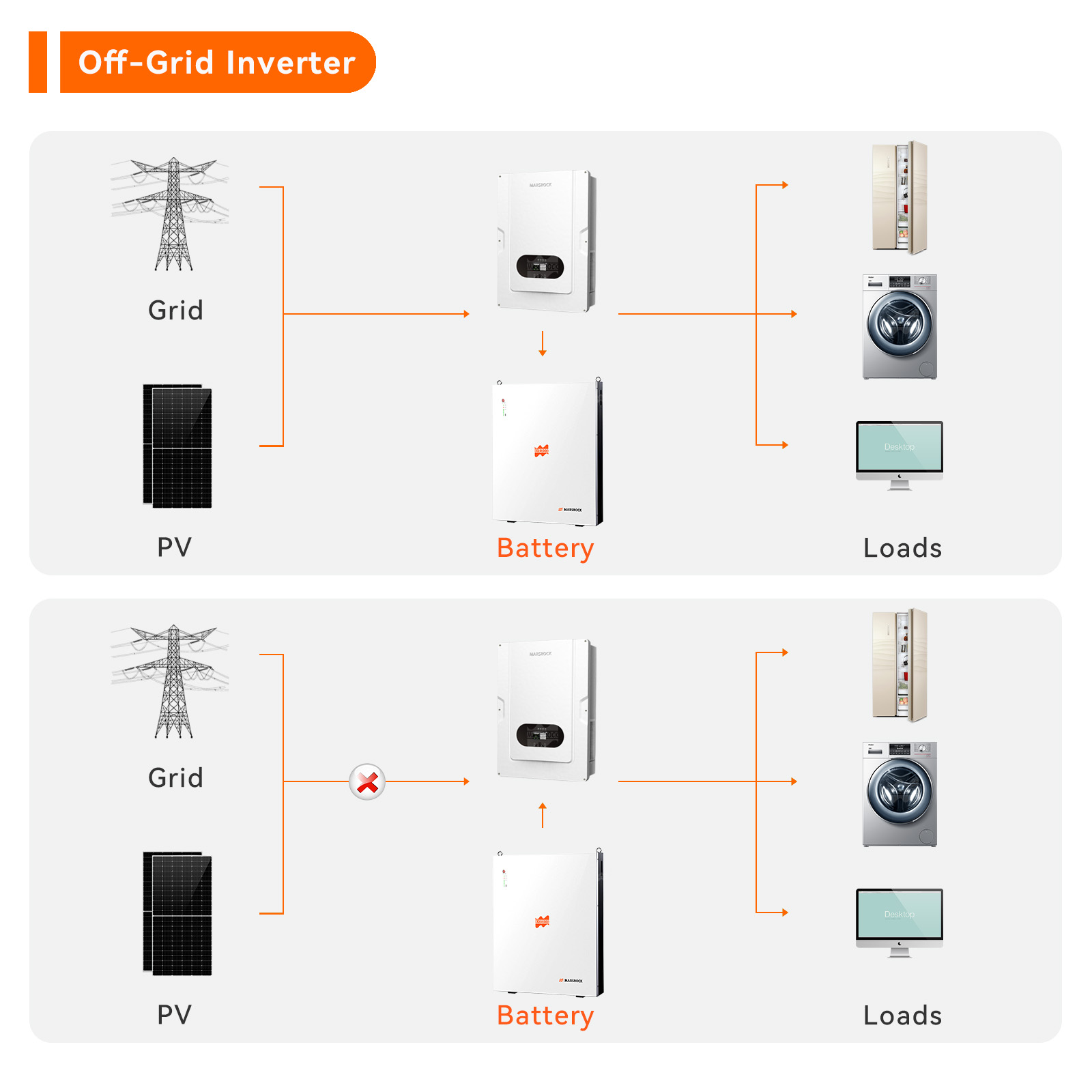

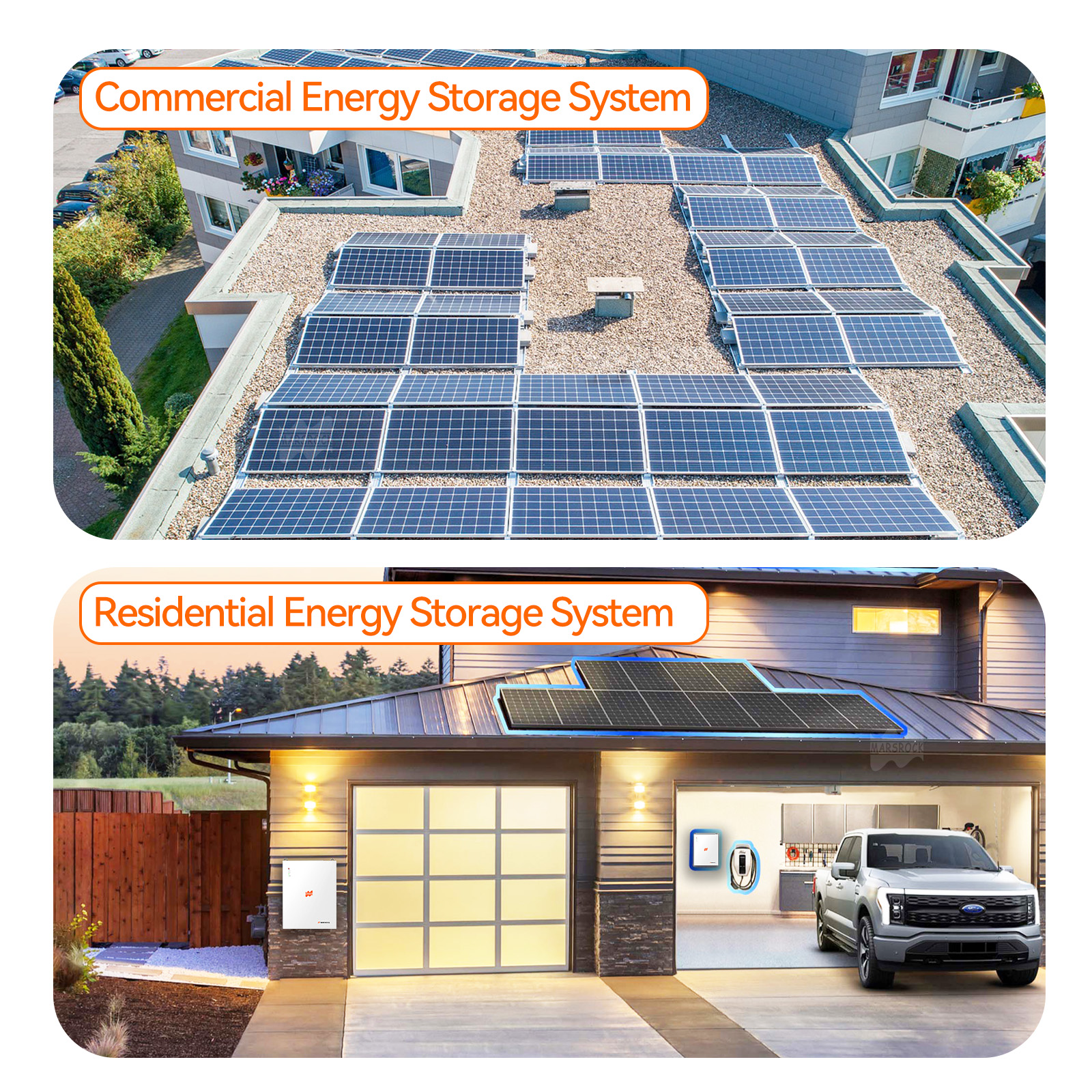

Application |
ON Grid / ON Grid + Backup / OFF grid |
|
Compatible inverters |
Refer to compatible inverter list (Compatible with major PCS brands) |
|
Standard Compliance |
|
|
Certificates |
Cell: UN38.3 / IEC62619 / UL 1642 / JET |
| Battery pack: UN38.3 / IEC62619 / IEC61000 / UKCA (More available upon request) | |
|
[1] Test conditions: 100% depth of discharge (DoD), 0.2C rate charge & discharge at 25℃ [2] Charge/discharge derating occurs when the operating temperature from -10℃ to 5 ℃.& 45 ℃ to 55 ℃ [3] Condition apply. Refer to Warranty Letter |
|
