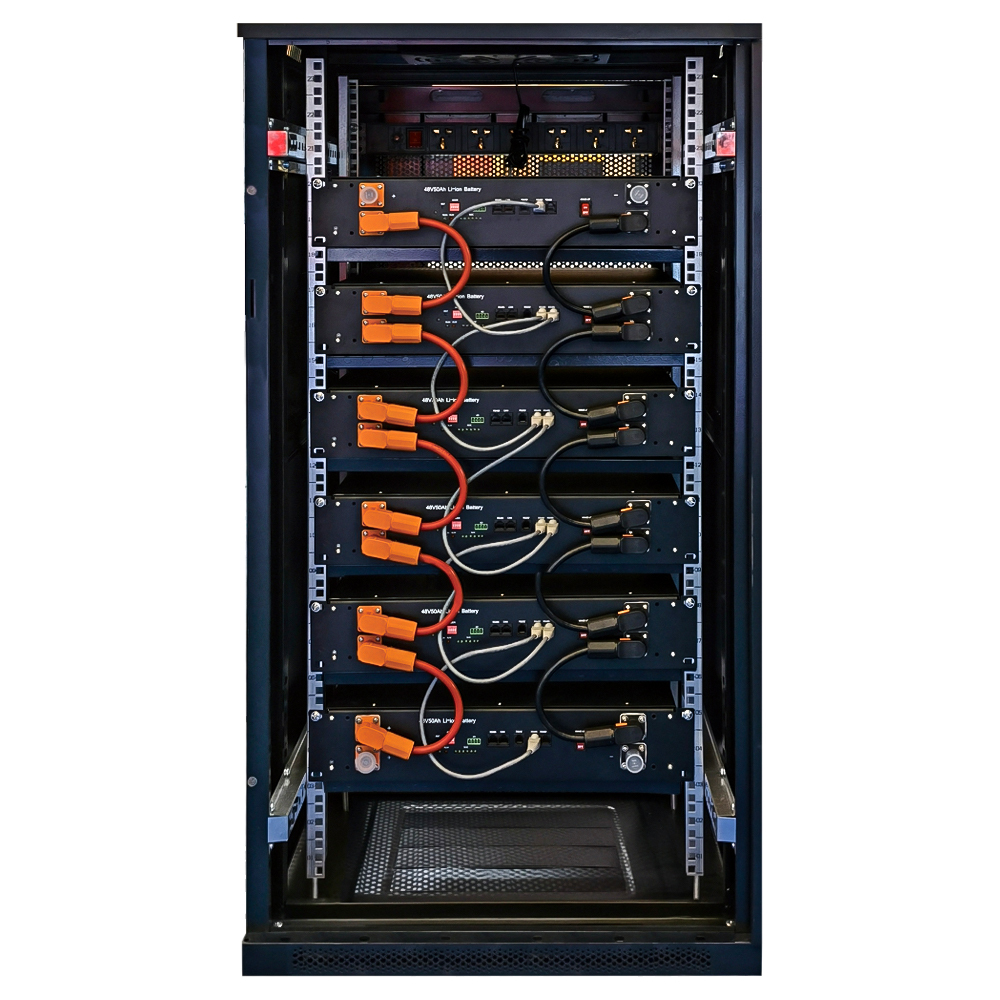

Name: 2400Wh*N 48V Hot Model Rack Mounted Lithium Energy Storage System
Brand: Marsrock Energy Storage Website
SKU: SG-2400Wh*N
Availability: InStock
Rating: 5 (1 reviews)

No.SG-2400Wh*N

The SG series rack mounted energy storage system has a large capacity, passed various international certifications,has complete safety protection functions.Added components can be buy for expansion.

Capacity

2.4kWh/2.56kWh/4.8kWh/5.12kWh/9.6kWh/10.24kWh

Normal Discharging Current

25A/25A/50A/50A/50A/50A

Voltage

40.5~54V DC

Max Number Of Parrallel

Capacity:

2.4kWh

2.56kWh

4.8kWh

5.12kWh

9.6kWh

10.24kWh

GET A QUOTE

Add to Quote List View Quote List

Description

Special Reminder:
The indicated global retail price only for your reference. Contact with us to get more discount and its current inventory quantity of us which located in your country.

Products

Feature

The modular design provides the flexibility to expand or reduce battery capacity depending on the energy needs and space available in the home.
A large amount of electrical energy can be stored in a relatively small space.
Used to store excess renewable electrical energy, thereby increasing energy efficiency.
Equipped with a power management system that monitors the status, performance and health of the batteries and automatically manages the charging and discharging process of the batteries.
By connecting multiple batteries in parallel and series, they can provide higher energy conversion efficiency and faster response times.

Technical Parameter

Capacity	2.4kWh	2.56kWh	4.8kWh	5.12kWh	9.6kWh	10.24kWh
Normal Discharging Current	25A	25A	50A	50A	50A	50A
Max Discharging Current	50A	50A	100A	100A	100A	100A
Voltage	40.5~54VDC
Standard Voltage	48VDC
Max Charging Current	25A	25A	100A	50A	200A	75A
Max Charging Voltage	54V
Suggested DOD Model	90%
Size(mm)	48441088.5	484410122	484410178	484410178	484590178	590484178
Weight	24.5kg	26.5kg	39.5kg	41.5kg	55kg	58kg
Humidity	20~60%
Installation	Rack mounted or cabinet
IP Rating	IP 20
Max Number Of Parrallel	16
Warranty	5 Years
Communication	CAN/RS485/RS232(WiFi/Bluetooth/4G optional)
Battery Protection	Over Current /OverVoltage/Short Circuit/Low Voltage/High Temperature
