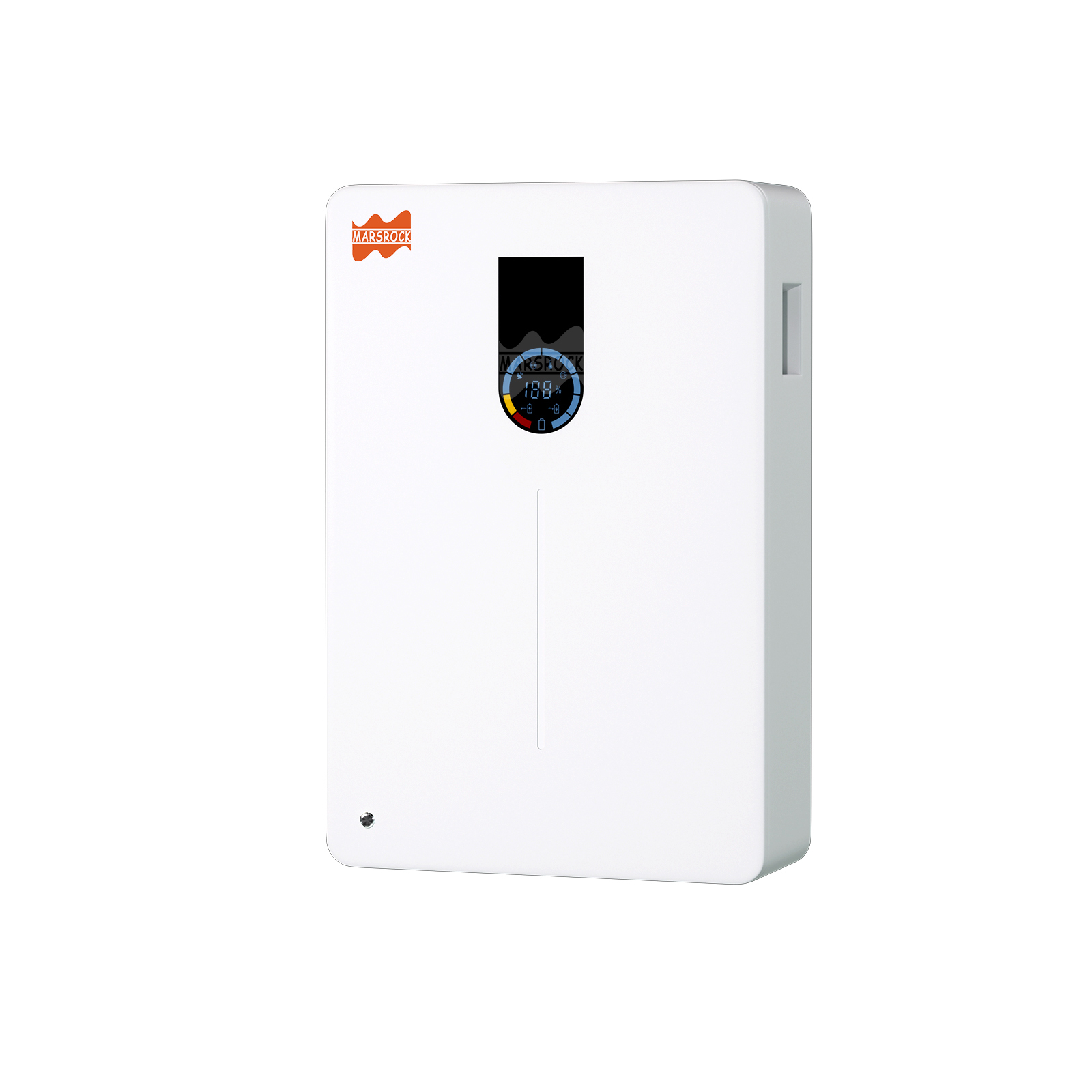

| Model | 48200 |
| Standard Voltage | 48V |
| Standard Capacity | 200Ah |
| Standard Energy | 9.6kWh |
| Working Voltage | 40.5-54v |
| Standard Charge Current | 100A |
| Standard Discharge Current | 100A |
| Suggested DOD | 80% |
| Cycle Life | >6000 cycles |
| IP Rating | IP21（Ip65 optional） |
| Operating temperature for discharge | -20℃~60℃ |
| Operating temperature for charge | 0℃~45℃ |
| Max Parallel | 15pcs |
| Communication | RS232/CAN/RS485(WIFI/BT optional) |
| Display | LED/LCD/(touch screen) optional |
| Warranty | 5 years |
| Certificate | UN38.3/MSDS/CE/ROHS/FCC |
| N.W./unit(kg) | 110 |
| G.W./unit(kg) | 125 |
| Product Size/unit(mm) | 790*530*200 |
| Meas/unit(mm)300 | 870*610*410 |
Certifications
