Feature

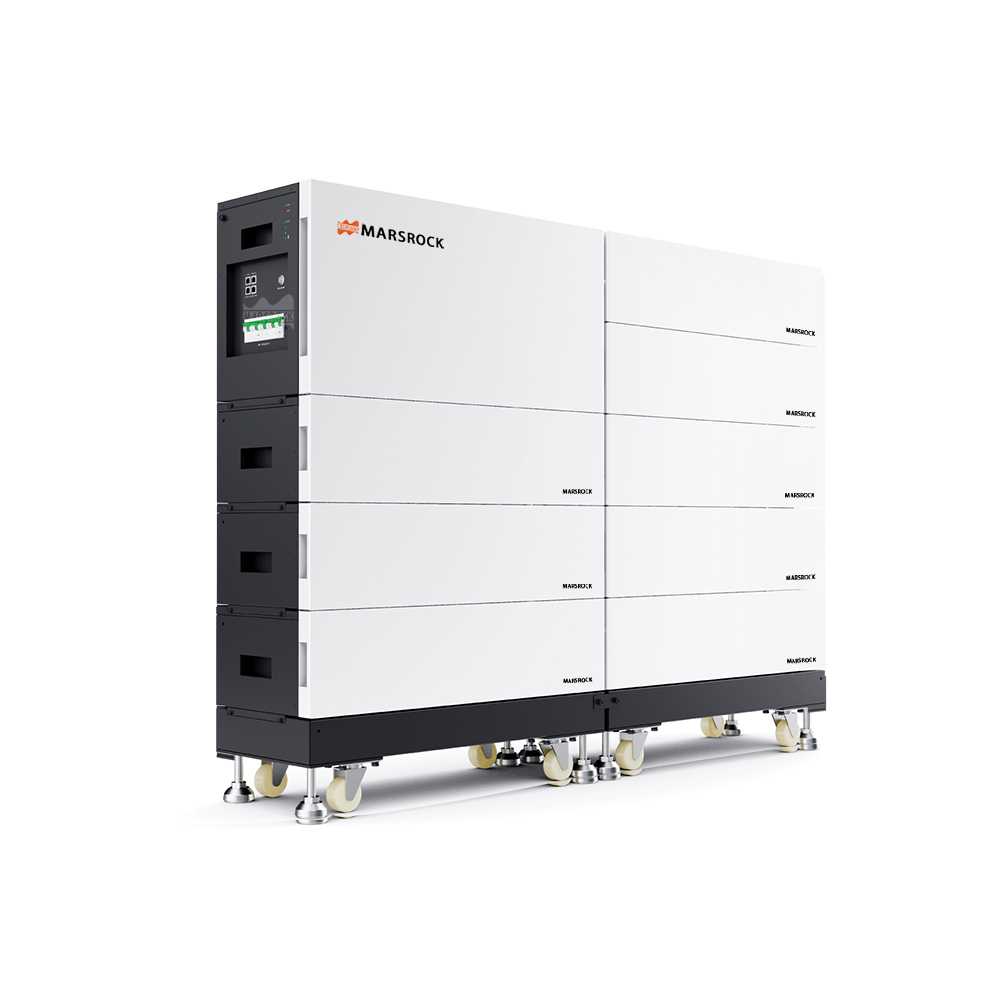

Overview:Indoor battery rack with IP20 protection level,inbuild lithium-ion battery and BMS
Easy Installation And Maintenance:Local and remote management, standard rack&module design, front maintenance
Safety & Reliable:Self-developed 2-level / 3-level BMS,complex protection, safe and reliable
High Density:LP high-capacity Li-ion battery with aluminum shell, over 130wh/kg
Long Lifespan:Long cycle life, 6000 cycles
Cell Balancing Technology:Active cell balancing and passive cell balancing
Product Paramenters| Performance | |
| Battery module (Wh/V) | 6.144 kWh，51.2V，64kg（141lbs） |
| Number of modules | 8 |
| Cell technology | LFP (LiFePO4) |
| Battery usable energy [1] | 49.152 kWh |
| Nominal voltage | 409.6 V |
| Operating voltage | 364.8-449.28 V |
| Nominal output current | 48 A |
| Communication | |
| Display | SOC status indicator, LED indicator |
| Communication | CAN / RS485 / RS232 |
| General Specification | |
| Weight | 1610x305x1150 mm |
| 63.4x12x45.3 inch | |
| Dimension (W*D*H) | About 564 kg (1243 lbs) |
| Operating temperature [2] | -20 to 60 °C (-4 to 140 °F) |
| Environmental humidity | ≤ 95%RH (No condensation) |
| Protection rating | IP 20 |
| Cycle life [3] | 6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL |
| Scalability | Yes |
| Application | ON Grid / ON Grid + Backup / OFF grid |
| Compatible PCS | Refer to compatible PCS list |
| Standard Compliance | |
| Certificates | Cell: UN38.3 / IEC62619 / UL 1642 / JET |
| Pack: UN38.3 / IEC62619 / IEC61000 | |
| Available upon request | |
| Ordering and Deliverable Part | |
| Part | E-MATE-6.1P-OT (Battery module) |
| E-MATE-BCU-050H1-OT (Main control box) | |
| E-MATE-6.1BP (Battery pedestal) | |
