Power & Speed:
Rocket your EV: Choose 30kW or 40kW DC charging for a speedy fill-up.
Go from empty to electric in minutes: Reduce charging time and get back on the road fast.
Wide voltage range: Adapts to any grid situation for consistent performance.
Convenience & Flexibility:
Charge any way you like: Card swipe, password, or QR code activation lets you choose.
Touchscreen control: Stay informed and manage charging with ease.
Smart & Connected:
Brainwave charging: Optimizes power and balances the grid automatically.
Cool and quiet: Temperature control keeps noise and energy consumption low.
Always up-to-date: OTA upgrades ensure you have the latest features and security.
Remote control: Monitor, manage, and update your charger from anywhere.
Bonus Features:
Light show: LED indicators keep you informed about charging status and potential issues.
Track your energy: AC and DC meters help you manage costs.
Built to last: Durable construction and weatherproof design for long-lasting performance.
Applications:

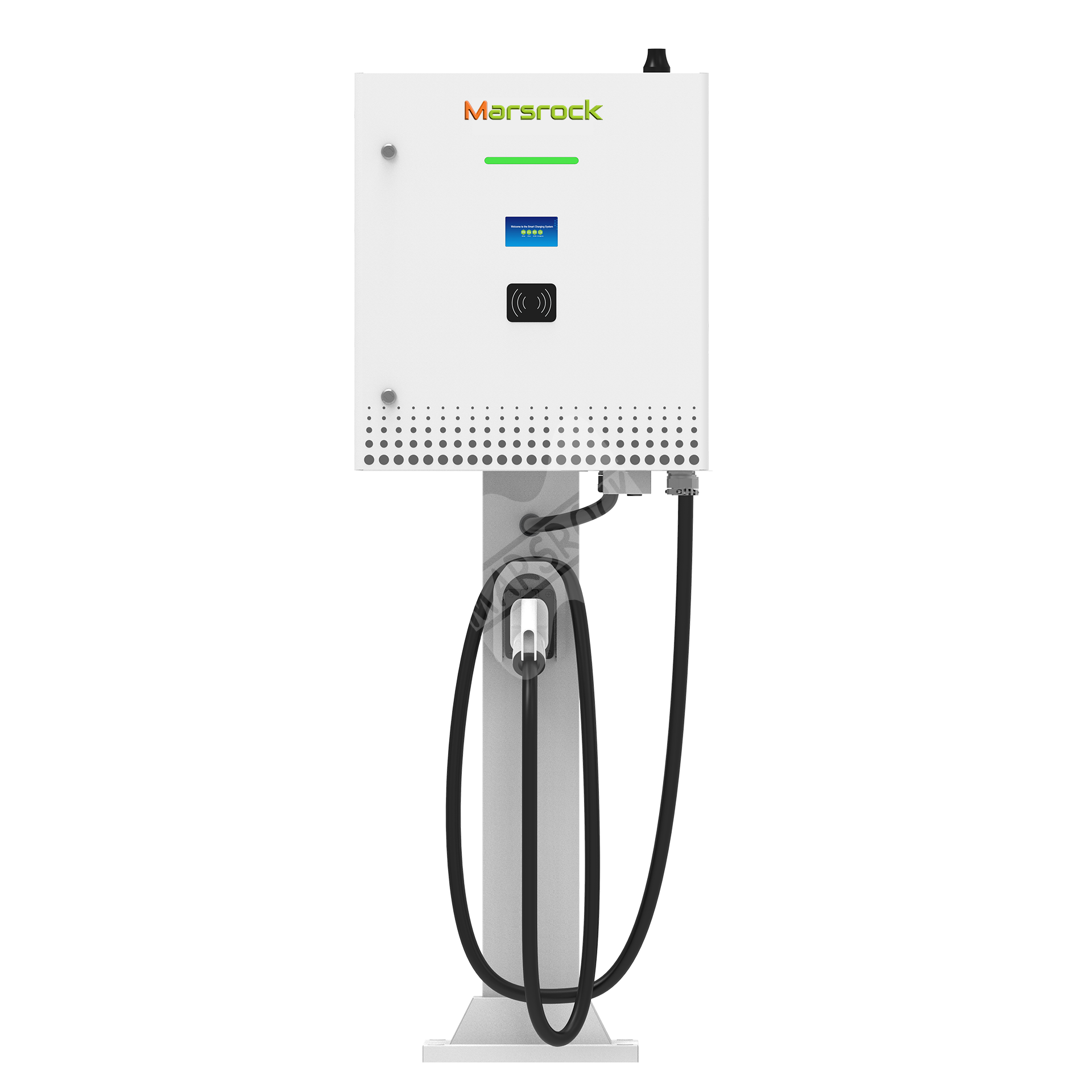

The 30/40kW wall-mounted DC EVSE is perfect for:
Commercial buildings: Offer convenient charging for employees and visitors.
Office buildings: Attract EV-driving tenants and boost occupancy rates.
Residential buildings: Make your apartment complex stand out with home charging amenities.
Parking garages: Enhance your facility's appeal with fast and reliable charging options.
EV infrastructure operators and service providers: Expand your network with a versatile and user-friendly charging solution.
Technical Specification
|
Parameters |
GN-DC-40kW-A |
GN-DC-40kW-B |
GN-DC-30kW-A |
GN-DC-30kW-B |
|
|
Input |
Power supply |
3P+N+PE |
|||
|
Voltage |
400 VAC ±15% |
||||
|
Frequency |
50/60 Hz |
||||
|
Output |
Voltage |
150~1000 VDC |
|||
|
Constant power voltage: DC 300-1000V |
|||||
|
Max current |
133 A |
100 A |
|||
|
Rated power |
40 kW |
30 kW |
|||
|
User Interface |
Charge plug |
CCS 2 |
CCS 1 |
CCS 2 |
CCS 1 |
|
Cable length |
5m (optional) |
||||
|
Enclosure |
Galvanized Steel |
||||
|
LED indicator |
Green/ Yellow/ Red/ Blue |
||||
|
LCD display |
4.3" Color Touchable LCD |
||||
|
RFID |
Non-contact (ISO/ IEC14443 A) |
||||
|
Start method |
QR code/ BLE/ Card/ PnC |
||||
|
Communication |
User Interface |
Ethernet/ 4G/ WIFI/ BLE5.0 (optional) |
|||
|
Protocol |
OCPP1.6J/ 2.0J (optional) |
||||
|
Electrical Performance |
Efficiency |
>95% (Half load and above) |
|||
|
Power factor |
>0.98 (Rated load) |
||||
|
Voltage Accuracy |
<±0.5% |
||||
|
Current Accuracy |
<±1% |
||||
|
Safety |
Meter Accuracy |
AC METER (MID, Optional) / DC METER; |
|||
|
Accuracy class 1.0 |
|||||
|
Emergency stop |
Yes |
||||
|
Protection grade |
IP54 and IK10 |
||||
|
Electrical protection |
Over-current, Leakage, Short Circuit, Grounding, Lightning, Under-voltage, Over-voltage, and Over-temperature |
||||
|
Certification |
CE, CB |
||||
|
Standard |
EN/IEC 61851-1, EN/IEC 61851-23, IEC 61851-24, EN/I EC 61851-21-1 |
||||
|
Working Environment |
Installation |
Wall mounted/ Floor mounted (with column optional) |
|||
|
Cooling |
Forced air cooling |
||||
|
Temperature |
-30°C~+50°C |
||||
|
Humidity |
5%~95% RH, non-condensing |
||||
|
Altitude |
≤2000m |
||||
|
Package |
Product size |
650*230*730 mm (W*D*H) |
|||
|
Package size |
996*866*428 mm (L*W*H) |
||||
|
Net weight |
71 kg |
||||
